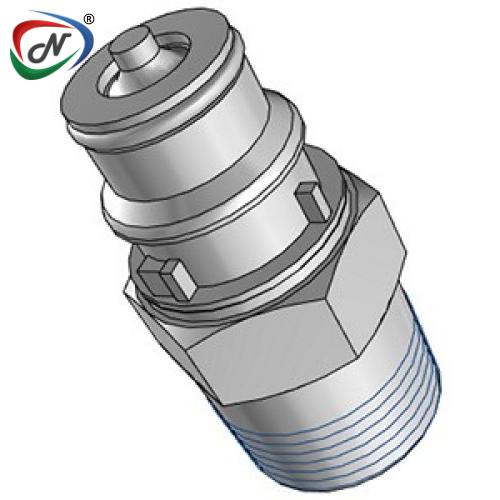

CQHD06200212 Valved In-Line Polypropylene Coupling Insert, 3/4 MNPT and FKM (Viton®) O-Ring
#NSSP004767
Product Description
CQHD06200212 Valved In-Line Polypropylene Coupling Insert, 3/4 MNPT and FKM (Viton®) O-Ring
Main Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 5.5 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: 32°F - 150°F (0°C - 66°C)
- Seal Options: Viton FKM
- Valve Spring: Hastelloy C
- Valve Options: Valved
- Body Type: Inserts
- Spillage: <0.1 cc (ml)/disconnect (reconnect)
- Bag Qty: 1
Additional Information
| NESPL Code | NSSP004767 |
| Manufacturer Code | CQHD06200212 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
