15500 1/8 NPT Valved Chrome-plated Brass Coupling Body (MCD1002 NSF)
#NSSP004245
Product Description

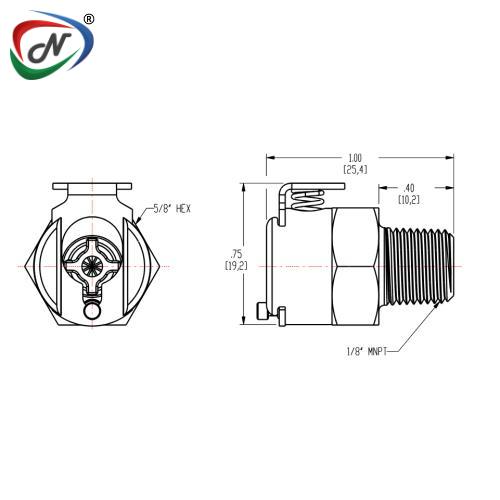

15500 1/8 NPT Valved Chrome-plated Brass Coupling Body (MCD1002 NSF)
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: -40°F
- 180°F (-40°C - 82°C)
- Seal Options: FDA
BUNA-N
- Valve Spring: 316
Stainless Steel
- Valve Options: Valved
- Body Type: Body
- Bag Qty: 10
Features – Benefits:
- Brass material - Durable
and able to withstand higher pressure and temperature
- High temperature capability - Versions
rated to 400°F (204°C)
- CPC thumb latch - One-hand
connection and disconnection
- Compatible - MC
mates with PMC and PMC12 Series couplings
Additional Information
| NESPL Code | NSSP004245 |
| Manufacturer Code | 15500 MCD1002 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
