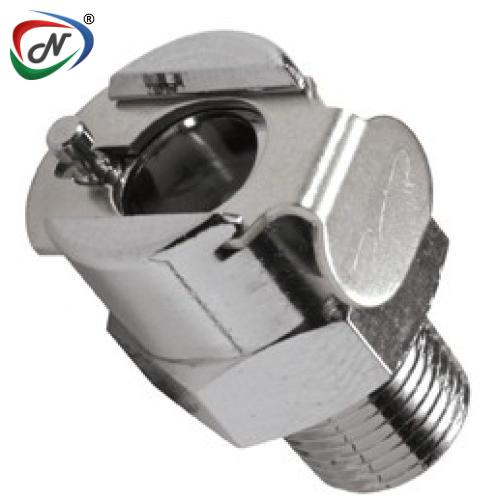

MC1002K2 1/8 NPT Non-Valved Chrome-plated Brass Coupling Body
#NSSP006526
Product Description
MC1002K2 1/8 NPT Non-Valved Chrome-plated Brass Coupling Body
Main Features:
- Brass Material
- compatible
- High temperature capability
- Colder thumb latch
Main Benefits:
- Durable and able to withstand higher pressure and temperature
- MC mates with PMC and PMC12 Series couplings
- Versions rated to 400°F (204°C )
- One-hand connection and disconnection
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Options: Non-Valved
- Body Type: Bodies
- Bag Qty: 10
Additional Information
| NESPL Code | NSSP006526 |
| Manufacturer Code | MC1002K2 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
