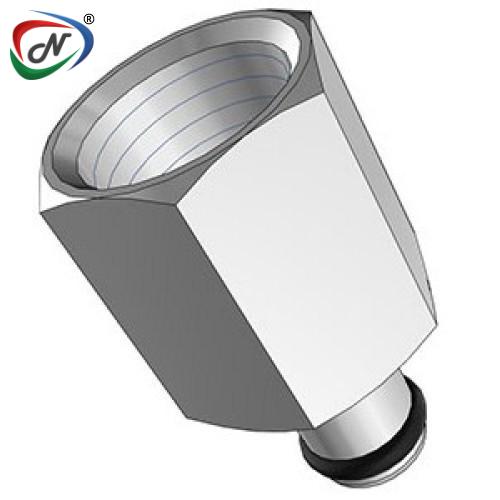

MC2604 1/4 NPT Non-Valved Chrome-plated Brass Coupling Insert
#NSSP006671
Product Description
MC2604 1/4 NPT Non-Valved Chrome-plated Brass Coupling Insert
Main Features:
- Brass material
- High temperature capability
- Colder thumb latch
- Compatible
Main Benefits:
- Durable and able to withstand higher pressure and temperature
- MC mates with PMC and PMC12 Series coupling
- Versions rated to 400°F (204°C
- One-hand connection and disconnection
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 10
Mating parts:
- PMCD100212
- PMC120412
- PMC160412
- MC1204
Additional Information
| NESPL Code | NSSP006671 |
| Manufacturer Code | MC2604 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
