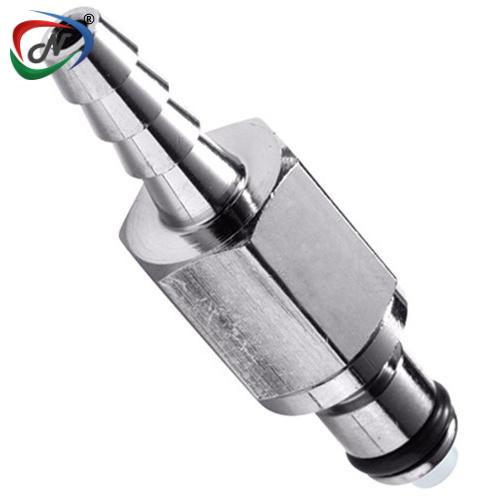

MCD2203HT 3/16 Hose Barb Valved Chrome-plated 3/16 Hose Barb Valved Chrome-plated
#NSSP006854
Product Description
MCD2203HT 3/16 Hose Barb Valved Chrome-plated 3/16 Hose Barb Valved Chrome-plated
Main Features:
- Brass Material
- compatible
- High temperature capability
- Colder thumb latch
Main Benefits:
- Durable and able to withstand higher pressure and temperature
- MC mates with PMC and PMC12 Series couplings
- Versions rated to 400°F (204°C )
- One-hand connection and disconnection
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 10
Additional Information
| NESPL Code | NSSP006854 |
| Manufacturer Code | MCD2203HT |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
