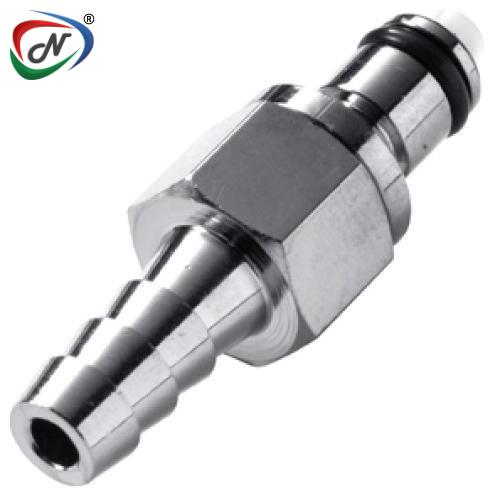

MCD2204 1/4 Hose Barb Valved Chrome-plated Brass Coupling Insert
#NSSP006856
Product Description
MCD2204 1/4 Hose Barb Valved Chrome-plated Brass Coupling Insert
Main Features:
- compatible
- High temperature capability
- Colder thumb latch
- Brass Material
Main benefits:
- Durable and able to withstand higher pressure and temperature
- MC mates with PMC and PMC12 Series couplings
- Versions rated to 400°F (204°C )
- One-hand connection and disconnection
Main Specifications:
- Material: Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to 250 psi, 17.3 bar
- Color:
Chrome
- Mounting
Option: Free Floating
- Temperature
Range: -40°F - 180°F (-40°C - 82°C)
- Seal
Options: BUNA-N
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Inserts
- Bag
Qty: 10
Additional Information
| NESPL Code | NSSP006856 |
| Manufacturer Code | MCD2204 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
