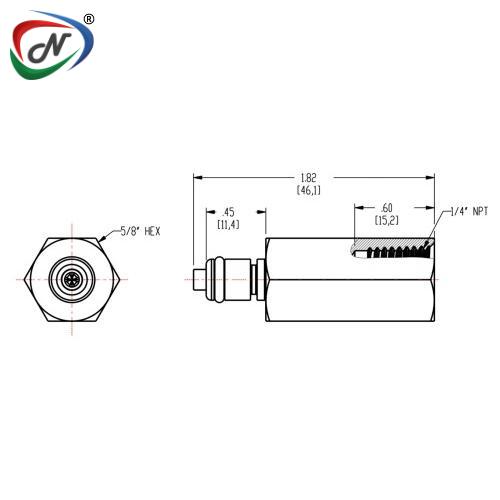

MCD2604 1/4 NPT Valved Chrome-plated Brass Coupling Insert
#NSSP005671
Product Description
MCD2604 1/4 NPT Valved Chrome-plated Brass Coupling Insert
Main Features:
- compatible
- High temperature capability
- Colder thumb latch
- Brass Material
Main benefits:
- Durable and able to withstand higher pressure and
temperature
- MC mates with PMC and PMC12 Series couplings
- Versions rated to 400°F (204°C )
- One-hand connection and disconnection
Main specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 5.5 bar
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: 32°F - 150°F (0°C - 66°C)
- Seal Options: BUNA – N
- Valve Spring: 316 stainless steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 10
Additional Information
| NESPL Code | NSSP005671 |
| Manufacturer Code | MCD2604 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
