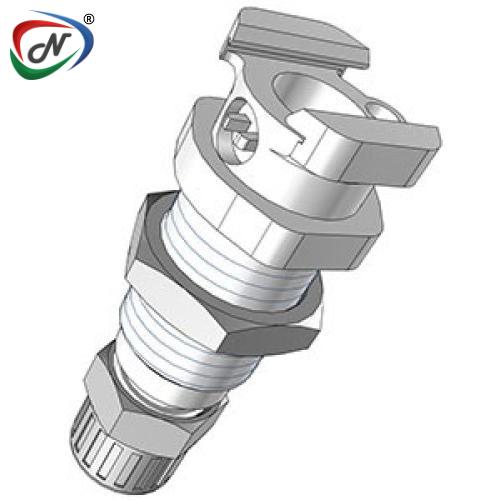

LM12006 3/8 PTF Non-Valved Multi-Mount Chrome plated Brass Coupling Body
#NSSP005979
Product Description
LM12006 3/8 PTF Non-Valved Multi-Mount Chrome plated Brass Coupling Body
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Options: Non-Valved
- Body Type: Bodies
- Bag Qty: 10
Main Features:
- Three to five line connection
- Separate flow paths
- Insert is keyed to body
- Separate flow paths
- Acetal or chrome-plated brass
Main Benefits:
- Fast, efficient operation
- Pressure and/or vacuum in one coupling
- Ensures correct line orientation
- Pressure and/or vacuum in one coupling
- Maximize design flexibility
Additional Information
| NESPL Code | NSSP005979 |
| Manufacturer Code | LM12006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
