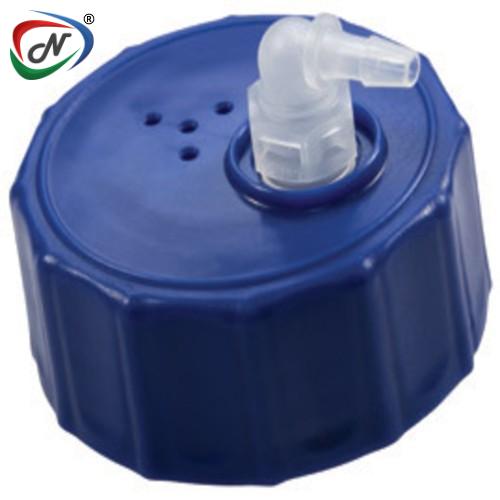

BQ45GL5001 45mm CAP x N4E4 fitting

#NSSP004697

Product Description

BQ45GL5001

45mm CAP x N4E4 fitting

Main Features:

Factory installed quick disconnects.
Hydrophobic packaging vent
Polyethylene foam gasket
Integral hose barb

Main Benefits:

Ensures cap properly seals to bottle (even without sealing rings)
Encourage proper fluid handling protocol allowing easy disconnections to replace or refill consumables in the correct location.
Allows dispensing from container while preventing accidental spillage.
Allows for mounting of ¼” ID DIP tube

Main Specifications:

Material: HDPE
Material Finish: Molded Blue
Color: Blue
Mounting Option: Free Floating
Temperature Range: 32°F - 120°F (0°C - 49°C)
Seal Options: EPDM
Valve Option: Valved
Body Type: Body
Bag Qty: 5

BOTTLE CAP - Polyethylene

DESCRIPTION	GL45 HDPE CAP WITH POLYETHYLENE FOAM SEALING GASKET, HYDROPHOBIC VENT AND INTEGRAL POLYPROPYLENE ELBOW FITTING (WITH 1?4" HOSE BARB)
PART NO.	BQ45GL5001
DIP TUBE SIZE	1/4" ID
A(Coupling)	0.63 (16.0)
B (Cap Height)	0.83 (21.1)
D(Cap Diameter)	2.04 (51.8)

*All measurements are in inches (millimetres) unless otherwise noted.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
