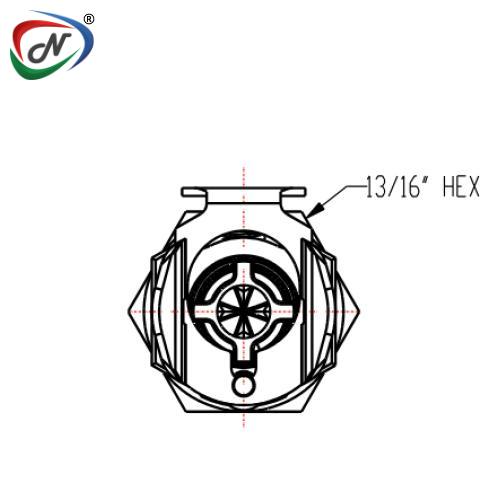

21100 1/4 Hose Barb Valved Panel Mount Acetal Coupling Body (PLCD16004 NSF)
#NSSP004276
Product Description
21100 1/4 Hose Barb Valved Panel Mount Acetal Coupling
Body (PLCD16004 NSF)
Main Specifications:
- Material: Acetal
- Material Finish: Molded
Orange
- Color: White
- Mounting Option: Panel
Mount
- Temperature Range: -40°F
- 180°F (-40°C - 82°C)
- Seal Options: FDA
BUNA-N
- Valve Spring: 316
Stainless Steel
- Valve Options: Valved
- Body Type: Body
- Bag Qty: 25
Features – Benefits:
- CPC thumb latch - One-hand
connection and disconnection
- Integral terminations - Fewer
leak points, shorter assemblies, faster installations
- Clicks when connected - Assurance
of a reliable connection
-
Compatible - Mates
with LC and PLC12 Series couplings
Additional Information
| NESPL Code | NSSP004276 |
| Manufacturer Code | 21100 PLCD16004 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
