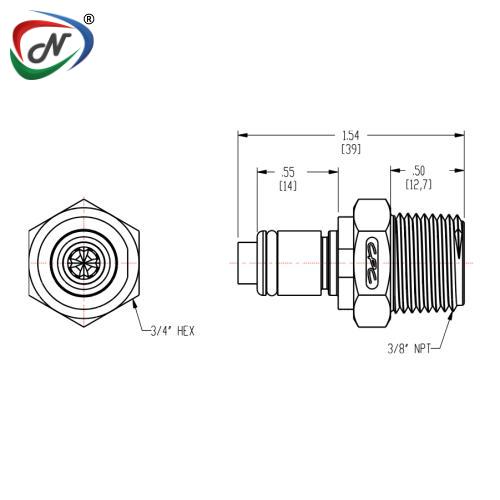

22200 3/8 NPT Valved Acetal Coupling Insert (PLCD24006 NSF)
#NSSP004286
Product Description
22200 3/8 NPT Valved Acetal Coupling Insert (PLCD24006
NSF)
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F
- 180°F (-40°C - 82°C)
- Seal Options: FDA
BUNA-N
- Valve Spring: 316 Stainless
Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
Features – Benefits:
- CPC thumb latch - One-hand
connection and disconnection
- Integral terminations - Fewer
leak points, shorter assemblies, faster installations
- Clicks when connected - Assurance
of a reliable connection
- Compatible - Mates
with LC and PLC12 Series couplings
Additional Information
| NESPL Code | NSSP004286 |
| Manufacturer Code | 22200 PLCD24006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
