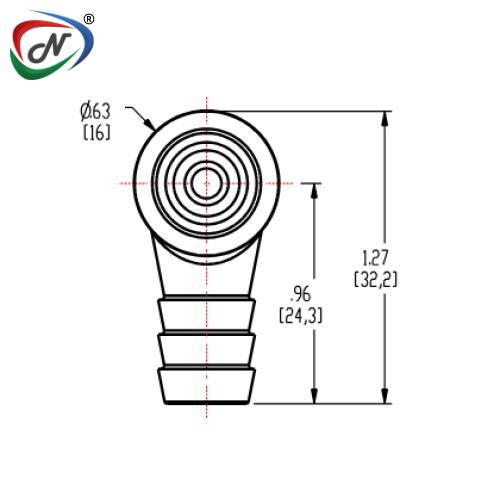

PLC2300612 3/8 Hose Barb Non-Valved Elbow Coupling Insert
#NSSP004397
Product Description
PLC2300612
3/8 Hose Barb Non-Valved Elbow Coupling Insert
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Almond
- Mounting Option: Free Floating
- Sterilization Method: Gamma:
Up to 50 kGy irradiation
- Temperature Range: 32°F -
160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 25
Features – Benefits:
- Polypropylene material - Chemically
resistant and gamma sterilizable
- EPDM o-rings - Greater
chemical resistance
- CPC thumb latch - One-hand
connection and disconnection
- Integral terminations - Fewer leak points, shorter assemblies, faster installations
Additional Information
| NESPL Code | NSSP004397 |
| Manufacturer Code | PLC2300612 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
