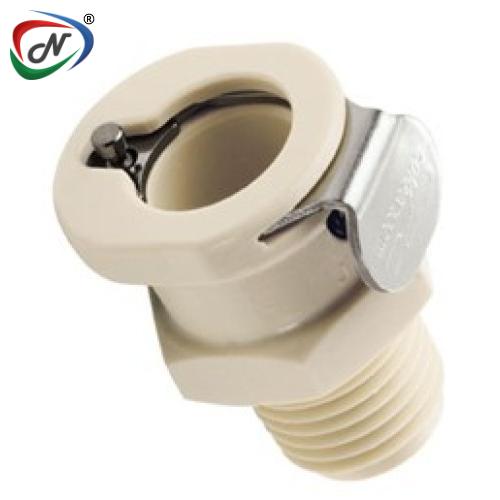

PLCX1000412 1/4 NPT Non-Valved Polypropylene Coupling Body
#NSSP006636
Product Description
PLCX1000412 1/4 NPT Non-Valved Polypropylene Coupling Body
Main Features:
- Polypropylene material
- EPDM o-rings
- Colder thumb latch
- Integral terminations
Main Benefits:
- Chemically resistant and gamma sterilizable
- Greater chemical resistance
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Almond
- Mounting Option: Thread
- Sterilization Method
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Valve Spring: 316 Stainless Steel
- Valve Options: Non-Valved
- Body Type: Bodies
- Bag Qty: 25
Additional Information
| NESPL Code | NSSP006636 |
| Manufacturer Code | PLCX1000412 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
