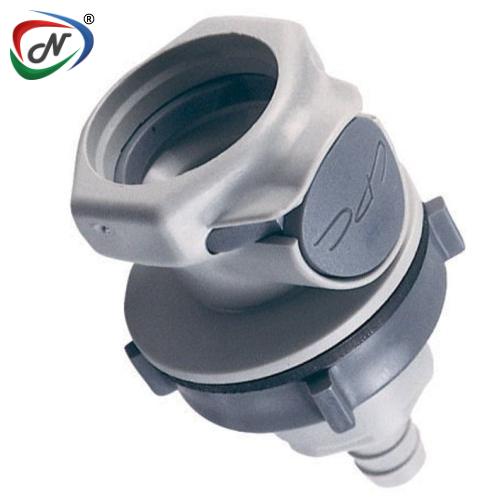

HFC16612 3/8 Hose Barb Non-Valved Panel Mount Polypropylene Body
#NSSP005213
Product Description
HFC16612 3/8 Hose Barb Non-Valved Panel Mount Polypropylene Body
Main Features:
- High Efficiency Valve
- Ergonomic Design
- Polypropylene Material
- Compatible
Main Benefits:
- More flow in a compact size
- Easy to grip, simple to operate
- Chemically resistant & gamma sterilizable
- Mates with HFC35 & HFC57 couplings
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: Gray
- Mounting Option: Thread
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 10
Additional Information
| NESPL Code | NSSP005213 |
| Manufacturer Code | HFC16612 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
