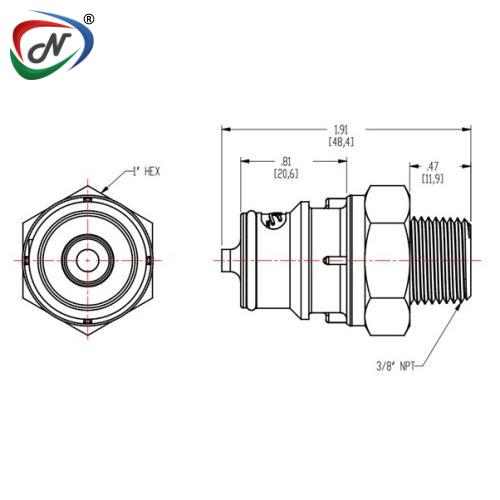

HFCD24612HC 3/8 NPT Valved Polypropylene Insert Hastelloy-C® Spring
#NSSP005479
Product Description
HFCD24612HC 3/8 NPT Valved Polypropylene Insert Hastelloy-C® Spring
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: Gray
- Mounting Option: Thread
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 10
Main Features:
- High efficiency valve
- Ergonomic design
- Polypropylene material
- Compatible
Main Benefits:
- More flow in a compact size
- Easy to grip, simple to operate
- Chemically resistant and gamma sterilizable
- Mates with HFC35 and HFC57 couplings
Additional Information
| NESPL Code | NSSP005479 |
| Manufacturer Code | HFCD24612HC |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
