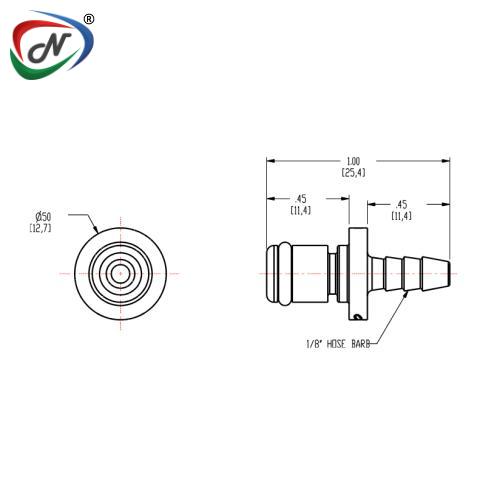

14700 1/8 Hose Barb Non-Valved In-Line Acetal Coupling Insert (PMC2202 NSF)
#NSSP004242
Product Description
14700 1/8 Hose Barb Non-Valved In-Line Acetal Coupling
Insert (PMC2202 NSF)
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: FDA BUNA-N
- Valve Options: Non-Valved
- Body Type: Insert
- Bag Qty: 25
- Hose barb shroud - Extra protection for the 1/16" hose barb
- Integral terminations - Fewer leak points, shorter assemblies, faster installations
- Compatible - Mates with PMC12 and MC Series couplings
- Clicks when connected - Assurance of a reliable connection
Features – Benefits:
Additional Information
| NESPL Code | NSSP004242 |
| Manufacturer Code | 14700 PMC2202 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
