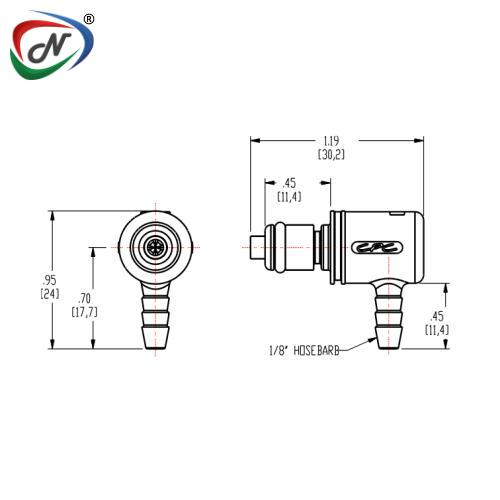

15000 1/8 Hose Barb Valved Elbow Acetal Coupling Insert (PMCD2302 NSF)
#NSSP004243
Product Description
15000 1/8 Hose Barb Valved Elbow Acetal Coupling Insert (PMCD2302 NSF)
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: FDA BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
- Hose barb shroud - Extra protection for the 1/16" hose barb
- Integral terminations - Fewer leak points, shorter assemblies, faster installations
- Compatible - Mates with PMC12 and MC Series couplings
- Clicks when connected - Assurance of a reliable connection
Features – Benefits
Additional Information
| NESPL Code | NSSP004243 |
| Manufacturer Code | 15000 PMCD2302 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
