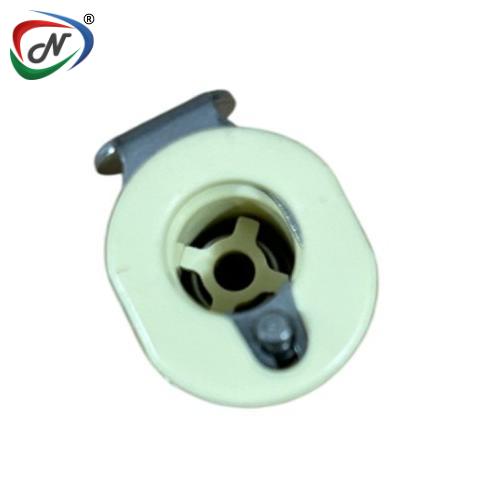

PMCD100212 1/8 NPT VALVED POLYPROPYLENE COUPLING BODY
#NSSP003992
Product Description
PMCD100212 1/8 NPT VALVED POLYPROPYLENE COUPLING BODY
Main Benefits:
- Chemically resistant and gamma sterilizable
- Greater chemical resistance
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Polypropylene
- EPDM O-ring
- Colder thumb latch
- Integral terminations
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Almond
- Mounting Option: Thread
- Sterilization Method: Gamma: Up to 50 kGy irradiation
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Body
- Bag Qty: 25
Additional Information
| NESPL Code | NSSP003992 |
| Manufacturer Code | PMCD100212 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
