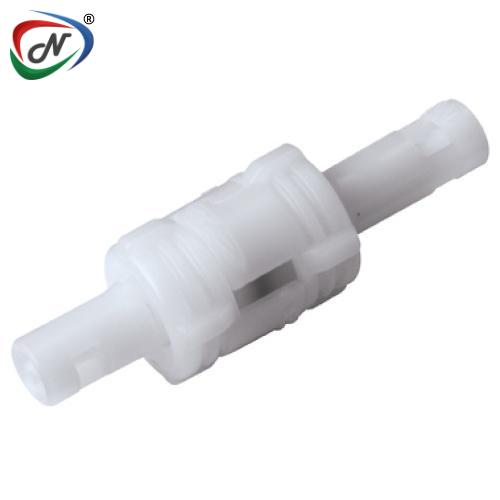

SMCD01 1/16 HOSE BARB VALVED IN-LINE ACETAL COUPLING SET
#NSSP005083
Product Description
SMCD01 1/16 HOSE BARB VALVED IN-LINE ACETAL COUPLING SET
Main Features:
- Single thumb latch
- Latch always in position to accept insert
- Compact, modular design
- Independent quick connections
Main Benefits:
- Minimizes inadvertent latch activation
- Ensures leak-free operation
- Fits well in the hand and is easy to wipe down
- Requires minimal manual dexterity
Main Specifications:
- Material: Acetal
- Material Finish: Dyed Black
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Mounting Option: Thread
- Sterilization: EtO, e-beam or gamma
- Temperature Range: 32°F - 120°F (0°C - 48°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Bodies
- Bag Qty: 50
Additional Information
| NESPL Code | NSSP005083 |
| Manufacturer Code | SMCD01 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
