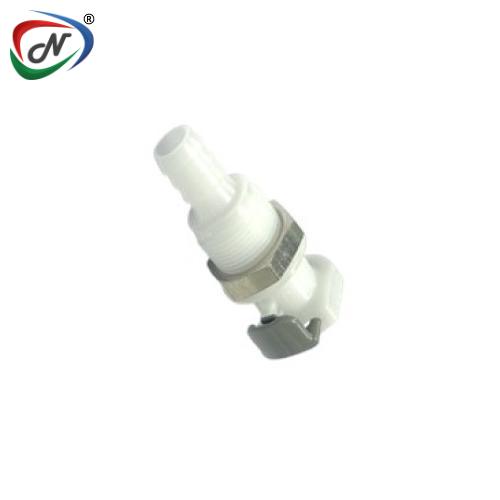

APCD16006 3/8 Hose Barb Valved Panel Mount Coupling Body
#NSSP003547
Product Description
APCD16006
3/8 Hose Barb Valved Panel Mount Coupling Body
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
|
COUPLING BODY |
Acetal |
|
TERMINATION |
PANEL MOUNT HOSE BARB |
|
TUBING/THREAD SIZE |
3/8" ID |
|
METRIC EQ. |
9.5mm ID |
|
STRAIGHT THRU |
APC16006 |
|
SHUTOFF |
APCD16006 |
|
A(Height/Diameter) |
1.03 (26.2) |
|
B (Total Length) |
2.1 (53.3) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Additional Information
| NESPL Code | NSSP003547 |
| Manufacturer Code | APCD16006 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Вес | 0.011KG |
| Type | Quick Fittings |
