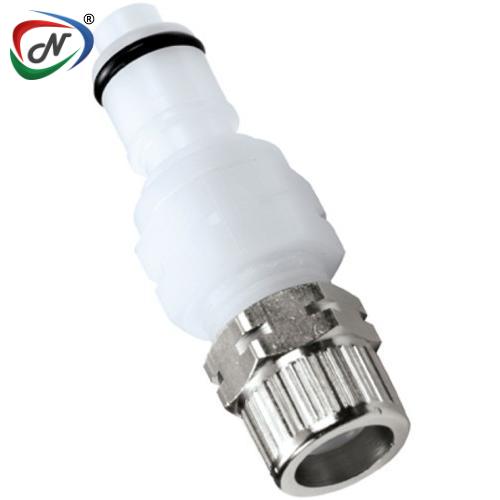

APCD200M10 10mm PTF Valved In-Line Acetal (POM) Coupling Insert
#NSSP004642
Product Description
APCD200M10 10mm PTF Valved In-Line Acetal (POM)
Coupling Insert
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed
metal parts
- Protects
against accidental disconnects
- Fewer leak
points, shorter assemblies, faster installations
- Mates with most
EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
Additional Information
| NESPL Code | NSSP004642 |
| Manufacturer Code | APCD200M10 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
