APCD22006 -3/8 Hose Barb Valved In-Line Acetal (POM) Coupling

#NSSP003533

Product Description

APCD22006 -3/8 Hose Barb Valved In-Line Acetal (POM) Coupling

Main Features:

Plastic thumb latch

Shrouded thumb latch

Integral terminations

Compatible

Main Benefits:

No exposed metal parts.

Protects against accidental disconnects.

Fewer leak points, shorter assemblies, faster installations

Mates with most EFC couplings

Main Specifications:

Material: Acetal

Material Finish: Natural

Pressure Range: Vacuum to 120 psi, 8.3 bar.

Color: White

Mounting Option: Free Floating

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Valve Spring: 316 Stainless Steel

Seal Option: Buna-N

Valve Option: Valved

Body Type: Insert

Bag Qty: 25

COUPLING INSERTS	Acetal
TERMINATION	IN-LINE HOSE BARB
TUBING/ THREAD SIZE	3/8" ID
METRIC EQ	9.5mm ID
STRAIGHT THRU	APC22006
SHUTOFF	APCD22006
A(Height/Diameter)	0.63/0.72 (16.0/18.3)
B( Total Length)	1.40/1.92 (35.6/48.8)

*All measurements are in inches (millimetres) unless otherwise noted.

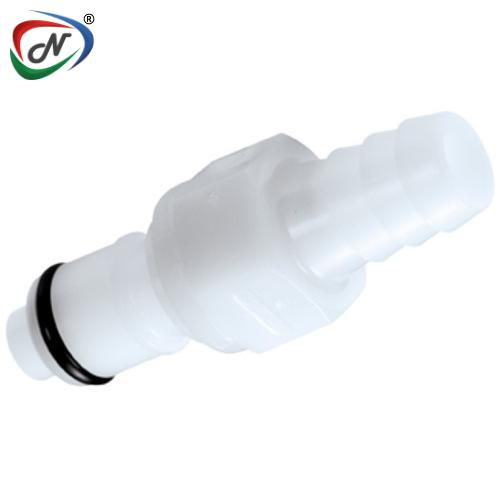

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
