EFCD22412 1/4 Hose Barb Valved In-Line Coupling Insert
#NCPC296
Product Description
EFCD22412
1/4 Hose Barb Valved In-Line Coupling Insert
Main Features:
- High Efficiency Valve
- Plastic Thumb Latch
- Polypropylene Material
- Compatible
Main Benefits:
- More Flow in a Compact Size
- Fewer Moving Parts
- Chemically Resistant & Gamma Sterilizable
- Mates with most APC couplings
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Bag Qty: 25
COUPLING INSERT - Polypropylene
TERMINATION | IN-LINE HOSE BARB |
TUBING/ THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | EFC22412 |
SHUTTOFF | EFCD22412 |
A(Height/Diameter) | 0.60/0.72 (15.2/18.3) |
B (Total Length) | 1.33/2.08 (33.8/52.8) |
*All measurements are in inches (millimetres) unless otherwise noted.

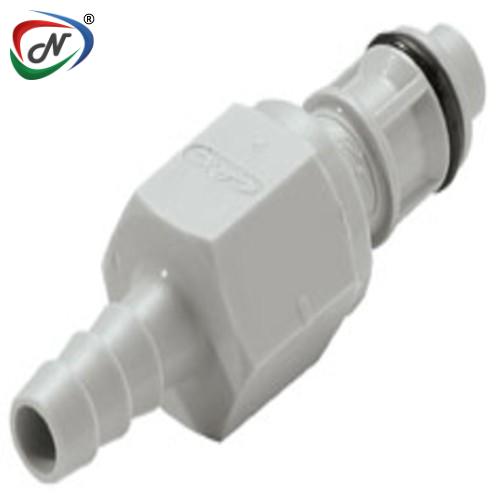

Note: Image is just for ref.
WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Additional Information
| NESPL Code | NCPC296 |
| Manufacturer Code | EFCD22412 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
