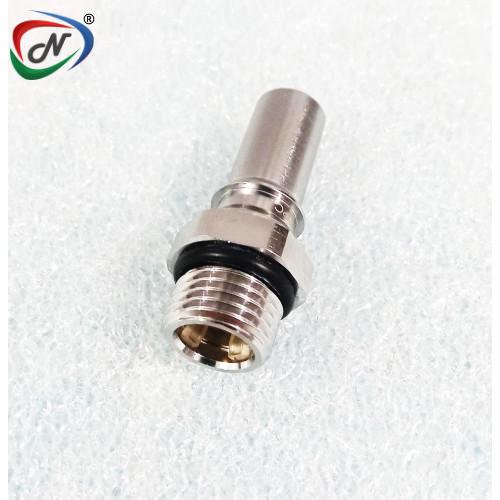

LQ4D46006BLU Everis 3/8 SAE Valved Liquid Cooling Coupling Insert, Cool Blue
#NSSP003182
Product Description
LQ4D46006BLU
Everis 3/8 SAE Valved Liquid Cooling Coupling Insert, Cool Blue
Main Features:
- Non-Spill Design
- Redundant Multi-Lobed Seals
- High Flow Capacity with Low Pressure Drop
- EPDM Or FKM Seals
- Ergonomic Body and Latch Design
- Colour Coding
- Low Profile
- Barbed & Threaded Terminations
Main Benefits:
- Disconnect Under Pressure with no Spills
- Extra Protection from Leaks over an Extended period of Time.
- Efficient, Cost-Effective Cooling System
- Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
- Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
- Instant Visual Identification of Cooling Lines.
- Meets size requirements for Space- Constrained Electronics
- Compatibility with various tubing options including reinforced tubing.
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Chrome with cool blue
- Mounting Option: Thread
- Temperature Range: 0°F - 240°F (-17°C - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect
- Weight: .0484 Ounce
- Bag Qty: 10
TERMINATION | IN-LINE STRAIGHT THREAD SAE |
TUBING/THREAD SIZE | 3/8 SAE-6: 9/16-181,3 |
SHUTOFF | LQ4D46006BLU |
HEX | 11/16" |
A(Height/Diameter) | 0.75 (19.1) |
B (Total Length) | 1.65 (41.8) |
C(Connected length) | 0.19 (4.8) |
All measurements are in inches (millimetres) unless otherwise noted.
Additional Information
| NESPL Code | NSSP003182 |
| Manufacturer Code | LQ4D46006BLU |
| HSN Code | 84818010 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Вес | 0.025kg |
| Type | Quick Fittings |
