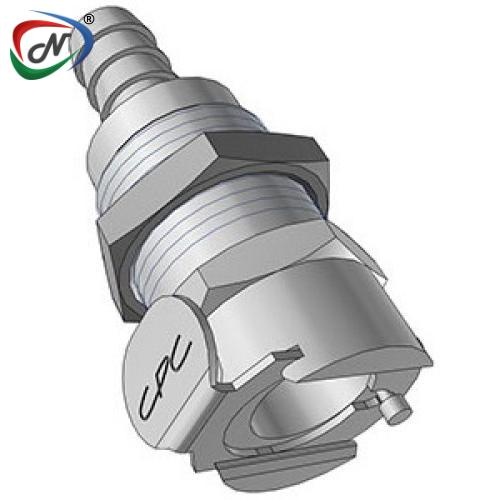

LCD16005 5/16 Hose Barb Valved Panel Mount Chrome-plated Brass Coupling Body
#NSSP005849
Product Description
LCD16005 5/16 Hose Barb Valved Panel Mount Chrome-plated Brass Coupling Body
Main Features:
- Brass Material
- Chrome Plating High Temperature
- Capability
- Compatible
Main Benefits:
- Durable & able to withstand higher pressure & temperature
- Attractive Appearance
- Versions rated to 400* F (240* C)
- Mates with PLC and PLC12 Series Coupling
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Weight: .108 Ounce
- Bag Qty: 10
Additional Information
| NESPL Code | NSSP005849 |
| Manufacturer Code | LCD16005 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Model | LCD16005 |
| Вес | .108 Ounce |
| Type | Quick Fittings |
