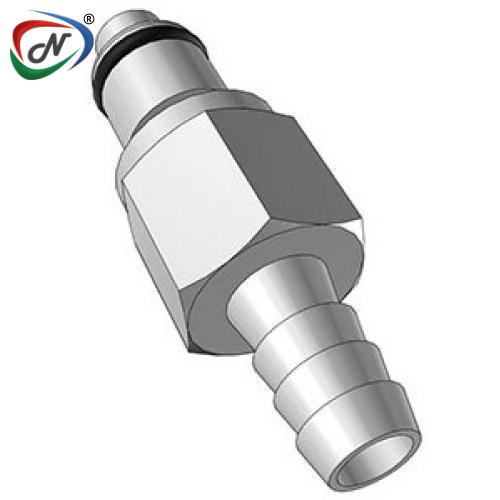

LCD22005 5/16 Hose Barb Valved In-Line Chrome plated Brass Coupling Insert
#NSSP005881
Product Description
LCD22005 5/16 Hose Barb Valved In-Line Chrome plated Brass Coupling Insert
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Metallic
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 10
Main Features:
- Brass material
- Chrome plating
- High temperature capability
- Compatible
Main Benefits:
- Durable and able to withstand higher pressure and
temperature
- Attractive appearance
- Versions rated to 400°F (204°C )
- Mates with PLC and PLC12 Series couplings
Additional Information
| NESPL Code | NSSP005881 |
| Manufacturer Code | LCD22005 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
