PLCD2200406MBLK 1/4" Hose Barb, Valved, In-line Coupling Insert

#NCPC283

Product Description

PLCD2200406MBLK

1/4" Hose Barb, Valved, In-line Coupling Insert

Main Features:

Single thumb latch

Latch always in position to accept insert

Compact, modular design

Independent quick connections

Main Benefits:

Minimizes inadvertent latch activation

Ensures leak-free operation

Fits well in the hand and is easy to wipe down

Requires minimal manual dexterity

Main Specifications:

Material: ABS

Material Finish: White with blue latch

Pressure Range: Vacuum to 20 psi, 1.38 bar

Mounting Option: Free Floating

Sterilization: EtO, e-beam or gamma

Temperature Range: 32°F - 120°F (0°C - 48°C)

Seal Options: BUNA-N

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Insert

Bag Qty: 25

COUPLING INSERTS - ABS

TERMINATION	IN-LINE HOSE BARB
TUBING/ THREAD SIZE	1/4" ID
METRIC EQ.	6.4mm ID
SHUTTOFF	PLCD2200406MBLK
A (Height/Diameter)	0.73 (18.5)
B (Total Length)	1.85 (47.0)

*All measurements are in inches (millimetres) unless otherwise noted.

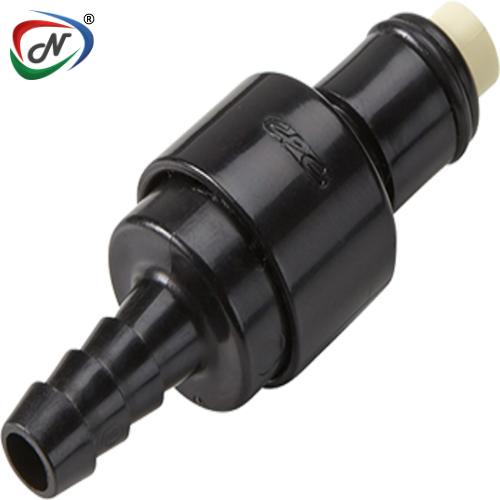

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
