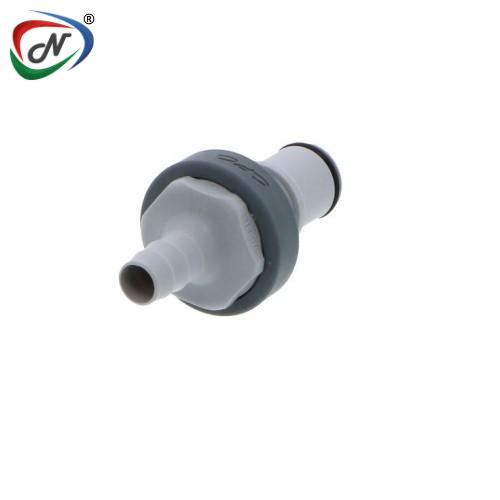

NS6D22006 3/8 Hose Barb Valved Molded Grey Polypropylene Coupling Insert
#NSSP007061
Product Description
NS6D22006 3/8 Hose Barb Valved Molded Grey Polypropylene Coupling Insert
Main Features:
- Non-Spill Design
- Color Coding
- Glass-filled Polypropylene
- Colder Thumb Latch
Main Benefits:
- Disconnect Under Pressure with No Spills.
- Instant Visual Differentiation of Media Lines.
- Durable & Compatible with Many Chemicals.
- One-Hand Connection and Disconnection.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray with dark gray overmold
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Inserts
- Spillage: ~0.03 cc per disconnect, 0.42 per connect
- Bag Qty: 10
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8" OD |
METRIC EQ. | 9.5 mm ID |
SHUTOFF | NS6D22006 |
A(Height/Diameter) | 1.31 (33.3) |
B (Total Length) | 2.59(65.8) |
*All measurements are in inches (millimetres) unless otherwise noted.
Additional Information
| NESPL Code | NSSP007061 |
| Manufacturer Code | NS6D22006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
