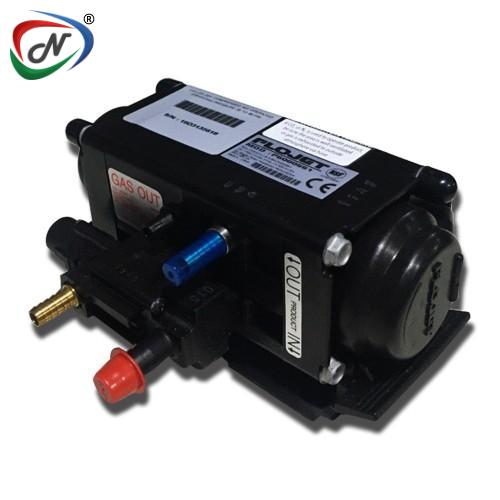

T-5000 FLOJET AIR DRIVEN BIB PUMP

Flojet Beverage Pump T5000-140 gas (CO2)/Air Driven Pump

• Compact design with quick disconnection fittings for simple, quick installation.
• Shuts off automatically when bag is empty and restarts when bag is connected.
• High altitude shut-off also available.
• Fully automatic, operates only when beverage is being dispensed.
• 1/4" (6.35mm) barbed, co2 exhaust port connection for venting away from confined areas.
• Maintains constant pressure at the dispensing valve.
• High suction capability empties syrup down to a minimum residual.
• Recyclable materials.

Main applications:

• Designed for dispensing bag-in-box syrups, juice concentrate (without pulp or particulates), teas, wines and liquor.
• Supplies the following from remote location: - four (4) 3.0oz (89ml) valves1 or - two (2) 4.5oz (133ml) valves2.

Main features:

•  Air-Operated Diaphragm (double) pump providing chemical resistance
•  Compact design
•  Positive displacement
•  Automatic shut off
•  Power source: CO2, Nitrogen, or compressed filtered air
•  Polypropylene house with stainless steel spring

Main specifications:

• Temperature limit: 1.1 degrees to 49 degrees Celsius
• Operating Pressure:  minimum 20 psi that can go up to 80 psi
•  Outlet Fitting: ¼”
•  CO2 Gas Fitting: ¼”
•  High Suction Capability
•  Minimal Residue
• Connections: - product, 9.5mm (3/8") barbed straight plastic inlet, 6.35mm (1/4") barbed straight stainless-steel outlet - air, 6.35mm (1/4") hose with shutoff
• Dimensions: - 158mm long, 62mm wide, 136mm high
•  output: - up to 118.3ml/sec (4.0 oz/sec). Maximum pressure 5.5bar (80psi)
• Auto demand starts pump when discharge valve is opened
• Self-priming up to 3m
• Pump can run-dry and handle liquids up to 49ºc (120ºf)
• Max. Air supply pressure 5.6bar (80psi)
• Packaged dimensions: l:8.00 x h:5.00 x w:7.00cm
• Actual weight: 0.61 kg (approx. 0.86 kg packed)

*The details supplied here are for information only.
