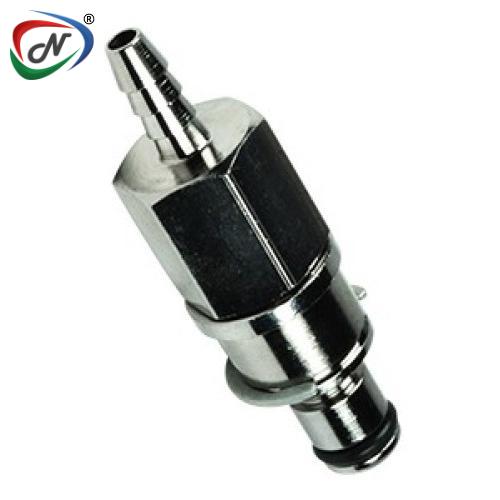

MM2202 1/8 Hose Barb Non-Valved Multi-Mount Chrome-plated Brass Coupling Insert
#NSSP007137
Product Description
MM2202 1/8 Hose Barb Non-Valved Multi-Mount Chrome-plated Brass Coupling Insert
Main Features:
- Three-to-five-line connection
- Separate flow paths
- Insert is keyed to body
- Separate flow paths
- Acetal or chrome-plated brass
Main Benefits:
- Fast, efficient operation
- Pressure and/or vacuum in one coupling
- Ensures correct line orientation
- Pressure and/or vacuum in one
- Maximize design flexibility
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 10
Additional Information
| NESPL Code | NSSP007137 |
| Manufacturer Code | MM2202 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
