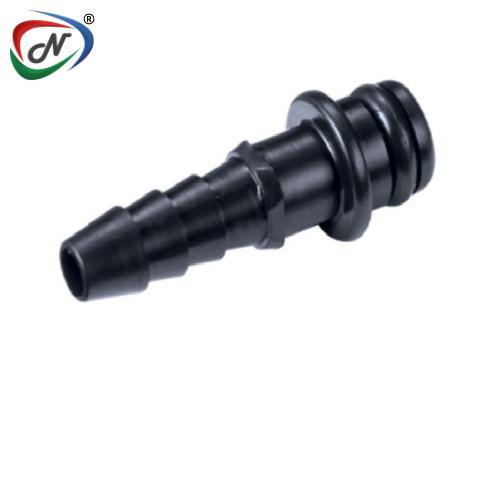

TMF02 1/8 HOSE BARB NON-VALVED FITTING ACETAL MOLDED BLACK COUPLING INSERT
#NSFG000234
Product Description
TMF02 1/8 HOSE BARB NON-VALVED FITTING ACETAL MOLDED BLACK COUPLING INSERT
Main Specifications:
- Material: Acetal
- Material Finish: Molded Black
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
- Color: Black
- Mounting Option: Free Floating
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 100
Main Features:
- Multi-line connection
- Separate flow paths
- Insert is keyed to body
Main Benefits:
- Fast, efficient operation
- Pressure and/or vacuum in one
coupling
- Ensures correct line
orientation
Additional Information
| NESPL Code | NSFG000234 |
| Manufacturer Code | TMF02 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
