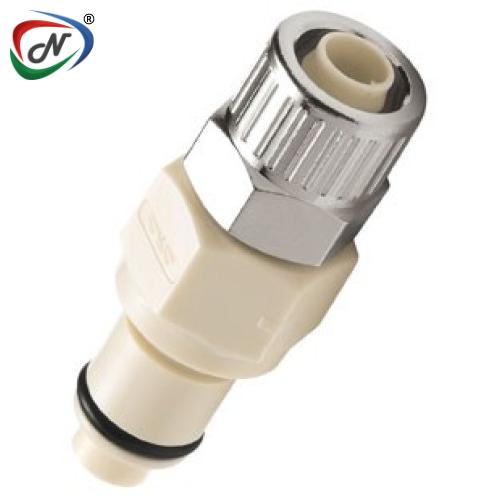

PLCD2000612 3/8 PTF Valved In-Line Polypropylene Coupling Insert
#NSSP006770
Product Description
PLCD2000612 3/8 PTF Valved In-Line Polypropylene Coupling Insert
Main Features:
- Polypropylene
material
- EPDM
o-rings
- Colder
thumb latch
- Integral
terminations
Main Benefits:
- Chemically
resistant and gamma sterilizable
- Greater
chemical resistance
- One-hand
connection and disconnection
- Fewer
leak points, shorter assemblies, faster installations
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 5.5 bar
- Color: Almond
- Mounting Option: Free Floating
- Sterilization Method:
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 25
Additional Information
| NESPL Code | NSSP006770 |
| Manufacturer Code | PLCD2000612 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
