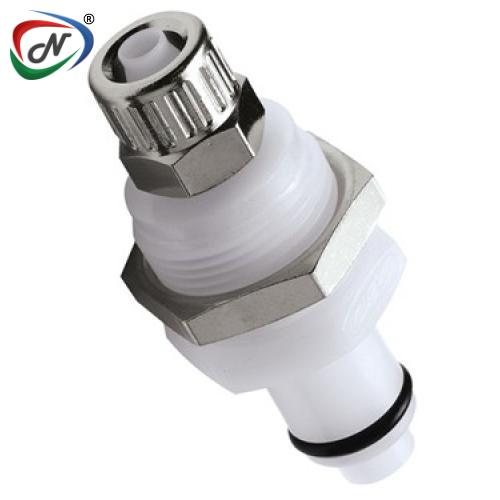

PLCD40004NA 1/4 PTF Valved Panel Mount Acetal Coupling Insert Nut Assembled
#NSSP006649
Product Description
PLCD40004NA 1/4 PTF Valved Panel Mount Acetal Coupling Insert Nut Assembled
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 25
Additional Information
| NESPL Code | NSSP006649 |
| Manufacturer Code | PLCD40004NA |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
