DPCD17004 1/4 HOSE BARB VALVED IN-LINE COUPLING BODY
#NSSP003552
Product Description
DPCD17004 1/4 HOSE BARB VALVED IN-LINE COUPLING BODY
MAIN FEATURES:
- Single thumb latch
- Insert keyed to body
- Compact, modular design
- Integral terminations
MAIN BENEFITS:
- Intuitive one step, two-line connection and disconnection
- Ensures correct directional flow
- Attractive, high-quality appearance and configuration flexibility
- Fewer moving parts, shorter assemblies, faster installations
Main Specifications:
- Material: Acetal
- Material Finish: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: In-Line
- Temperature Range: 32°F - 180°F (0°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
STRAIGHT THRU | DPC17004 |
SHUTOFF | DPCD17004 |

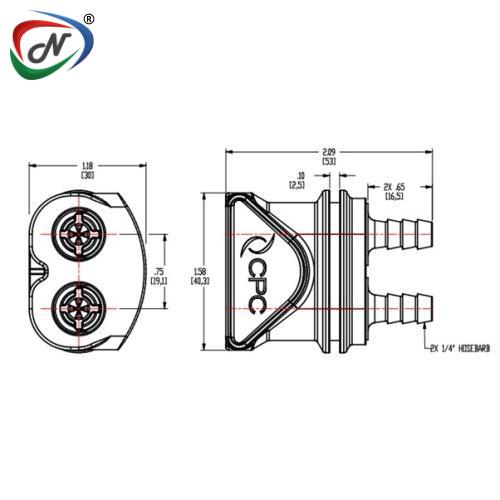

A(Height/Diameter) | 1.62 (41.1) |
B (Total Length) | 2.09 (52.9) |
C (Center-to-center distance) | 0.75 (19.1) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Additional Information
| NESPL Code | NSSP003552 |
| Manufacturer Code | DPCD17004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Вес | 0.024kg |
| Type | Quick Fittings |
