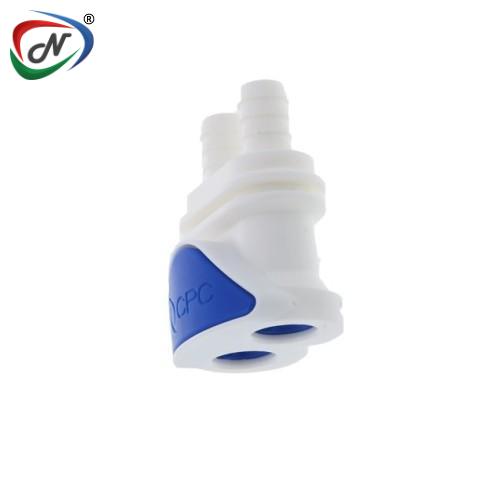

DPCD17006 3/8 Hose Barb Valved In-Line Panel Mount Coupling Body

#NSSP003167

Product Description

DPCD17006

3/8 Hose Barb Valved In-Line Panel Mount Coupling Body

Main Features:

Single thumb latch

Insert keyed to body

Compact, modular design

Integral terminations

Main Benefits:

Intuitive one step, two-line connection & disconnection

Ensures correct directional flow

Attractive, high-quality appearance and configuration flexibility

Fewer moving parts, shorter assemblies, faster installations

Main Specifications:

Material: Acetal

Material Finish: White

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: White

Mounting Option: In-Line

Temperature Range: 32°F - 180°F (0°C - 82°C)

Seal Options: BUNA-N

Valve Option: Valved

Valve Spring: 316 Stainless Steel

Body Type: Body

Bag Qty: 25
COUPLING BODY - Acetal

TERMINATION	IN-LINE HOSE BARB
TUBING/ THREAD SIZE	3/8" ID
METRIC EQ.	9.5mm ID
STRAIGHT THRU	DPC17006
SHUTOFF	DPCD17006
A(Height/Diameter)	1.62 (41.1)
B (Total Length)	2.09 (52.9)
C (Center-to-center distance)	0.75 (19.1)

*All measurements are in inches (millimetres) unless otherwise noted.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
