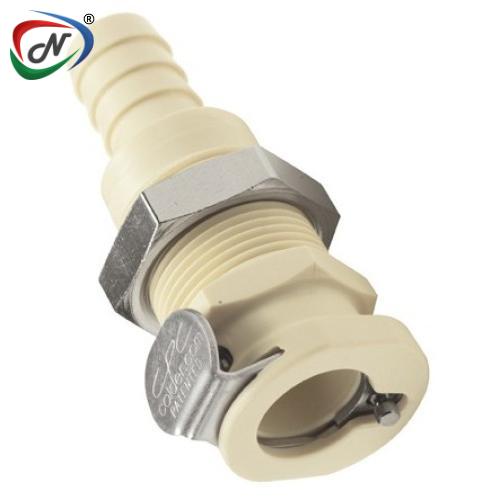

PLCD1600612V 3/8 Hose Barb Valved Panel Mount Polypropylene Coupling Body FKM Seal
#NSSP006793
Product Description
PLCD1600612V 3/8 Hose Barb Valved Panel Mount Polypropylene Coupling Body FKM Seal
Main Features:
- Polypropylene material
- EPDM o-rings
- Colder thumb latch
- Integral terminations
Main Benefits:
- Chemically resistant and gamma sterilizable
- Greater chemical resistance
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Almond
- Mounting Option: Panel Mount
- Sterilization Method
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Bodies
- Bag Qty: 25
Additional Information
| NESPL Code | NSSP006793 |
| Manufacturer Code | PLCD1600612V |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
