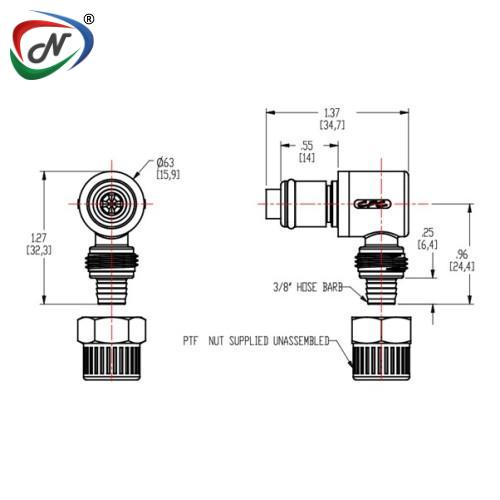

PLCD2100612 3/8 PTF Valved Elbow Polypropylene Coupling Insert
#NSSP006752
Product Description
PLCD2100612 3/8 PTF Valved Elbow Polypropylene Coupling Insert
Main Specifications:
- Material: Polypropylene
- Material
Finish: Almond
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Almond
- Mounting
Option: Free Floating
- Sterilization
Method: Gamma: Up to 50 kGy irradiation
- Temperature
Range: 32°F - 160°F (0°C - 71°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Inserts
- Bag Qty: 25
Main Features:
- Polypropylene
material
- EPDM
o-rings
- Colder
thumb latch
- Integral
terminations
Main Benefits:
- Chemically
resistant and gamma sterilizable
- Greater
chemical resistance
- One-hand
connection and disconnection
- Fewer
leak points, shorter assemblies, faster installations
Additional Information
| NESPL Code | NSSP006752 |
| Manufacturer Code | PLCD2100612 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
