BAC22004 1/4 Hose Barb Non-Valved In-Line BreakAway Coupling Insert
#NCPC264
Product Description
BAC22004
1/4 Hose Barb Non-Valved In-Line BreakAway Coupling Insert
Main Features:
- Factory installed quick disconnects.
- Hydrophobic packaging vent
- Polyethylene foam gasket
- Integral hose barb
Main Benefits:
- Ensures cap properly seals to bottle (even without sealing rings)
- Encourage proper fluid handling protocol allowing easy disconnections to replace or refill consumables in the correct location.
- Allows dispensing from container while preventing accidental spillage.
- Allows for mounting of ¼” ID DIP tube
Main Specifications:
- Material: Acetal
- Material Finish: Molded White
- Pressure Range: Vacuum to 20 psi, 1.4 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: 0°F - 150°F (-18°C - 66°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Non-Valved
- Body Type: Insert
- Weight: .0067 Ounce
- Bag Qty: 25

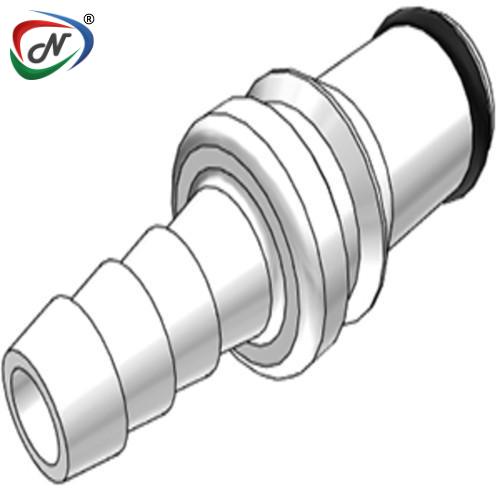

Note: Image is just for ref.
WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Additional Information
| NESPL Code | NCPC264 |
| Manufacturer Code | BAC22004 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
