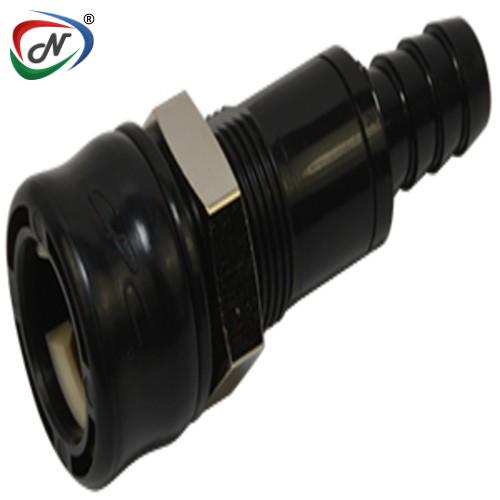

BACD16006MBLK 3/8 Hose Barb Valved Panel Mount BreakAway Coupling Body Molded Black
#NCPC262
Product Description
BACD16006MBLK
3/8 Hose Barb Valved Panel Mount BreakAway Coupling Body Molded Black
Main Features:
- Factory installed quick disconnects.
- Hydrophobic packaging vent
- Polyethylene foam gasket
- Integral hose barb
Main Benefits:
- Ensures cap properly seals to bottle (even without sealing rings)
- Encourage proper fluid handling protocol allowing easy disconnections to replace or refill consumables in the correct location.
- Allows dispensing from container while preventing accidental spillage.
- Allows for mounting of ¼” ID DIP tube
Main Specifications:
- Material: Acetal
- Material Finish: Molded Black
- Pressure Range: Vacuum to 20 psi, 1.4 bar
- Color: Black
- Mounting Option: Panel Mount
- Temperature Range: 0°F - 150°F (-18°C - 66°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Weight: .0232 Ounce
- Bag Qty: 25
Additional Information
| NESPL Code | NCPC262 |
| Manufacturer Code | BACD16006MBLK |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
