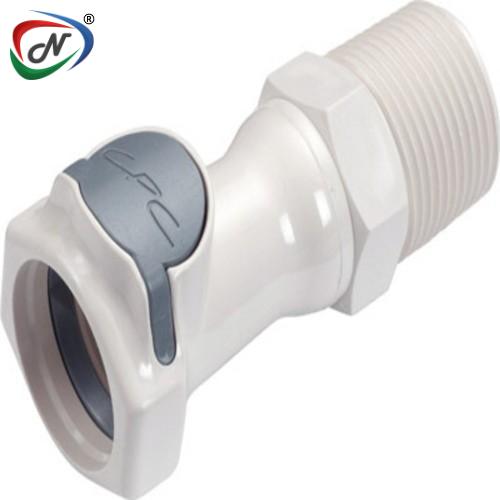

FFC101235 3/4 NPT Non-Valved Coupling Body
#NCPC302
Product Description
FFC101235
3/4 NPT Non-Valved Coupling Body
Main Features:
- No Valves
- Polysulfone Material
- Ergonomic Design
Main Benefits:
- Exceptional Flow
- Physically Strong & Autoclavable
- Easy to Grip, Simple to Operate
Main Specifications:
- Material: Polysulfone
- Material Finish: Molded White
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: FDA BUNA-N
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 10
COUPLING BODIES - Polypropylene
TERMINATION | IN-LINE PIPE THREAD |
TUBING/ THREAD SIZE | 3/4" NPT |
STRAIGHT THRU | FFC101235 |
A(Height/Diameter) | 1.44 (35.3) |
B (Total Length) | 3.12 (76.4) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Additional Information
| NESPL Code | NCPC302 |
| Manufacturer Code | FFC101235 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
