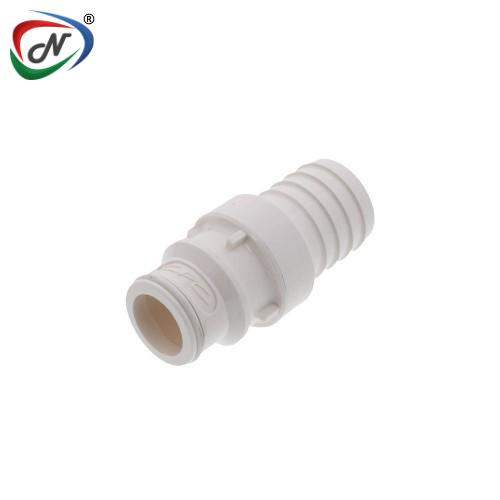

FFC221235 3/4 Hose Barb Non-Valved Coupling Insert
#NSSP005052
Product Description
FFC221235
3/4 Hose Barb Non-Valved Coupling Insert
Main Features:
- No Valves
- Polysulfone Material
- Ergonomic Design
Main Benefits:
- Exceptional Flow
- Physically Strong & Autoclavable
- Easy to Grip, Simple to Operate
Main Specifications:
- Material: Polysulfone
- Material Finish: Molded White
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: FDA BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 10
COUPLING INSERTS - Polypropylene
TERMINATION | IN-LINE HOSE BARB |
TUBING/ THREAD SIZE | 3/4" ID |
METRIC EQ. | 19.0mm ID |
STRAIGHT THRU | FFC221235 |
A(Height/Diameter) | 1 (24.5) |
B (Total Length) | 2.02 (49.5) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters
Note: Image is just for ref.
WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Additional Information
| NESPL Code | NSSP005052 |
| Manufacturer Code | FFC221235 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
