Sauerman Mini Condensate Removal Pump Omega Pack 2

#NESPLSAUERMANPUMP1

Product Description

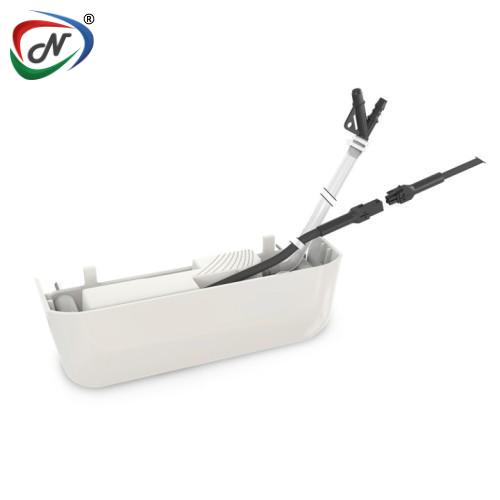

Sauerman Mini Condensate Removal Pump Omega Pack 2

All-in-one efficiency - Piston pump

Ready-to-install kit for mini-split systems

The Omega Pack 2 is specifically designed to be positioned beneath a wall-mounted air conditioning unit, providing a comprehensive solution for effective condensate drainage.

Featuring a highly compact design, the Omega Pack 2 includes a state-of-the-art pump that utilizes Sauermann’s latest patented piston pump core, along with a spacious tank that is insulated to avoid condensation.

Key Features:

Rapid installation and upkeep.
Exceptional performance.
Maximum discretion.
Sleek, compact design

Main Specifications:

Max flow rate: 20 l/h
Max discharge head: 10 m
Max pressure: 14 m
Insulation class: Double insulation
Mains supply: 230 V~ 50 Hz - 15 W
Operation conditions: 100% - Continuous duty
Protection: IP20
Max condensate temperature: 35 °C
Color: RAL 9003 – Pure white
Weight: 0.67 g
Safety switch: NC 3 A resistive load – 250 V
Detection: Detection unit

Kit Contains:

1 Omega Pack 2 with integrated piston pump, detection unit and 0.2 m length connector
1 Soft transparent PVC tube int. Ø 6 mm, 1 m length, factory fitted with pre-mounted “Drain Safe Device”
1 power & alarm cable, 1.5 m length with connector
1 soft PVC tube, 250 mm length, int. Ø 15 mm
2 screws
2 plugs
2 washers
3 rislans

Note: This Sauermann product is manufactured in compliance with ISO 9001 quality standards and is certified to meet REACH, RoHS, and TSCA regulatory requirements.
