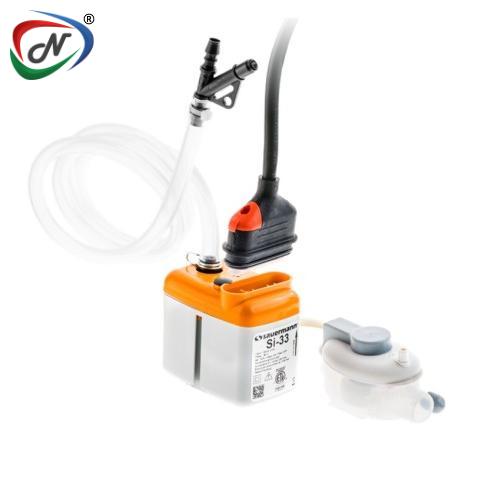

Sauermann Si-33 SI33CE01UN23 Max Flow Rate
#NESPLSAUERMANNPUMP7
Product Description
Sauermann Si-33 SI33CE01UN23 Max Flow Rate
The high-capacity Si-33 (30l/h) is suitable for
air-conditioning units from 20 kW up to 30 kW.
The piston pump inside the Si-33 is specifically designed
for removing condensates from air conditioning systems in any environment.
Main Features:
- High resistance to pollution
- High performance
- Proven Reliability
- Drain Safe Device
- Low sound level
Main Specifications:
- Max
flow rate: 8 gph 30 l/h
- Max
discharge head: 43 ft 13 m
- Max
pressure: 60 feet 18 m
- Max
suction head: 13 feet 3.3 m
- Insulation
class: Double insulation
- Mains
supply: 230V~ 50/60Hz - 21 W
- Operation
conditions: 50% : 3s ON – 3s OFF
- Protection:
IP20
- Master
pack quantity: 20
- Safety
switch: NC 3 A resistive load – 250 V
- Detection:
Block Detection
Kit Contains:
- 1 Si-33 pump
- 1 Clear PVC tube int. diam. 6mm – L: 1m, fitted with a «
Drain Safe Device » pre-mounted
- 1 Anti-vibration mounting bracket
- 1 1.5 m lockable plug-in power cable: 2 power wires, 2
safety switch wires.
- 1 6 tie wraps, 2.5 x 100mm
- 1 Detection unit (SI2958, 1.5m cable)
- 1 Detection unit installation kit: rubber elbow 90°, vent tube, mounting rail, adhesive
Note: Sauermann products are ISO 9001 certified and fully compliant with REACH, RoHS, and TSCA regulations, ensuring high quality, safety, and environmentally responsible manufacturing.
Additional Information
| NESPL Code | NESPLSAUERMANNPUMP7 |
| Manufacturer Code | SI33CE01UN23 |
| Manufacturer | Sauermann |
| Type | Pump |
