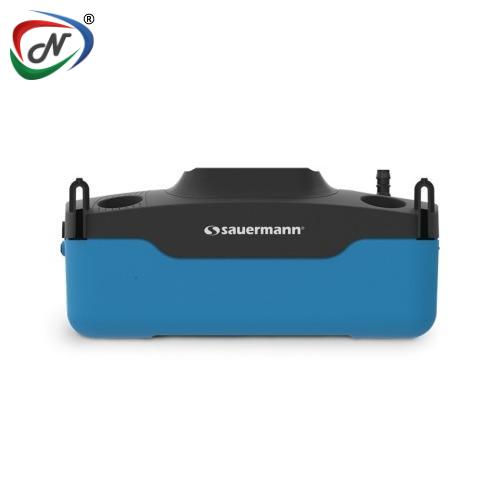

Sauermann Si-83 SI83CE01UN23 Condensate Tank Pumps

Sauermann Si-83 SI83CE01UN23 Condensate Tank Pumps

Ref: SI83CE41UN23 - SI83CE71UN23 - SI83CE04UN23 - SI83CE74UN23

The Tank Pump Re-Invented

Sauermann engineers have reimagined the tank pump from the inside out, resulting in the Si-83 being more compact than any other tank pump in its category, while also transforming the ease of installation and maintenance in the field. Additionally, the Si-83 is equipped with a tailored Smartphone App that facilitates a straightforward and intuitive installation process.

The Si-83 is built using robust materials and components, ensuring outstanding durability and reliability. The Sauermann Si-83 tank pump is ideal for residential air conditioning systems (up to 20 kW) and heating units (up to 40 kW).

Main Features:

• Extremely High Performance
• Faster & Simpler Maintenance
• Faster & Simpler Installation Anywhere
• Outstanding Durability and Reliability

Main Specifications:

• Max discharge head: 5.4 m
• Max pressure: 5.7 m
• Mains supply: 230 V~ 50 Hz - 115 W – 1.4 A
• Operation conditions: 7%: 16s ON - 212s OFF
• Protection: IP44
• Max condensate temperature: 55 °C
• Max condensate acidity: pH > 2,5 (Gas condensing boilers)
• Color: Black, blue
• Tank volume: 2 L
• Weight: 1.83 g
• Master pack quantity: 105
• Safety switch: NC: 5 A resistive 250 V (SI83CE01UN23, SI83CE04UN23). NO: 5 A resistive 250 V (SI83CE41UN23). NC/NO: 5 A resistive 250 V (SI83CE71UN23, SI83CE74UN23)

Kit Contains:

• 1 One-piece centrifugal pump with 2 l tank
• 1 Integrated barb end check valve, Ø ext. 10 mm
• 1 1.8 m power cord, plug. (SI83CE04UN23, SI83CE74UN23: bare ends)
• 1 Built-in safety switch, 1 m wires, plug, NC (SI83CE01UN23), NO (SI83CE41UN23) or NC/NO (SI83CE71UN23)
• 1 Built-in safety switch, 1 m wires, stripped wires: NC (SI83CE04UN23), NC/NO (SI83CE74UN23)
• 2 screws, 2 plugs
• 1 Straight connector with tube and zip tie for Ø 6 mm int. tubes

Note: Certified by CE (Si-83), UKCA (Si-83), EAC Declaration, ISO 9001, REACH, RoHS, and TSCA, ensuring compliance with international quality, safety, and environmental standards.
